The Vehicles

In my early days of travelling I was a backpacker; reliant on public transport and forever frustrated by how inconvenient, uncomfortable, exhausting, unpleasant and even dangerous it often was. Arriving late at night on the edge of a town and falling prey to avaricious taxi drivers, or booking expensive ‘tours’ to get out into the wilderness were wearisome experiences. In those days it never even crossed my mind to take my own vehicle. Aside from not having a driving licence, I imagined it would be prohibitively expensive and logistically very difficult to travel by such means through multiple countries outside of the EU. Both of these assumptions were largely incorrect.

Eventually, it was a newspaper clipping sent to me by my mother in 2004 which gave me the idea to travel with my own vehicle. As I read the story of one man riding his motorcycle all around Africa, I was inspired by the sense of freedom and independence and by the idea of a long, overland journey: something with which I had been transfixed since childhood. I vowed to make a similar journey. The vehicle concept soon changed from a motorcycle to a four-wheel drive (more convenient, more luggage space, less dangerous) and much later the destination changed from Africa to Eurasia, but essentially it was at this moment that The Odyssey was conceived.

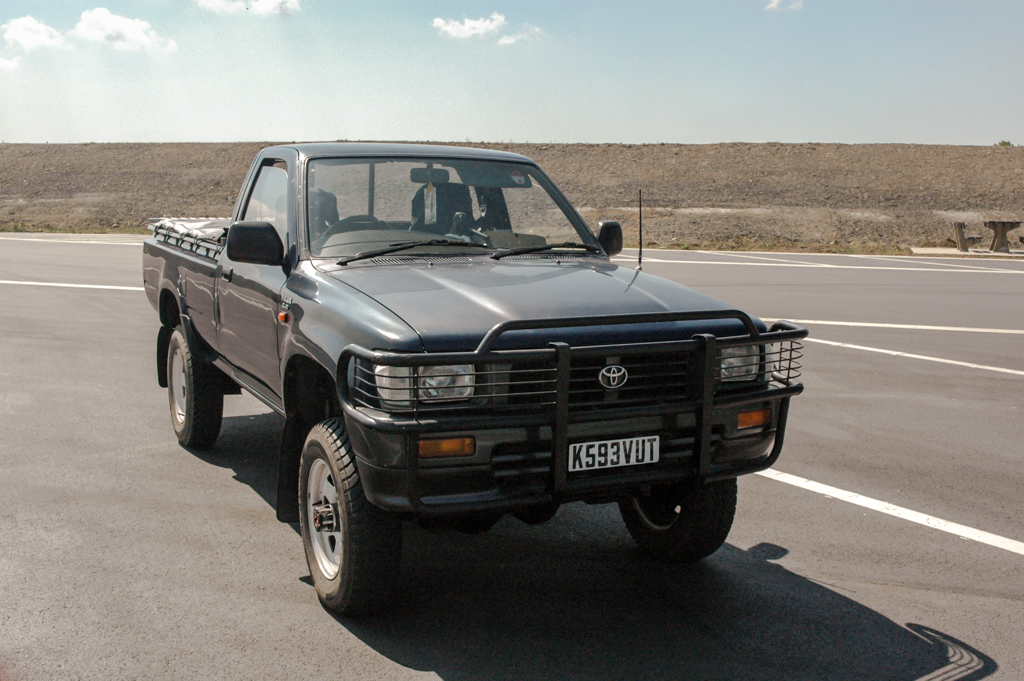

The Very First Day – Belgium – 6th May 2007

After very little research, it became clear to me that there was only one choice of vehicle manufacturer and the question of which vehicle to take became a question of which Toyota to take. After much consideration, I chose a 1993 Hilux 4×4 Diesel. Reliable, tough and utilitarian, mechanically simple, free from worrisome electronics, comparatively light, economical and ubiquitous throughout much of Eurasia, the Hilux made an excellent overland vehicle. It would take me over some seriously rough terrain, over some of the world’s highest roads, across the snowy wastes of Mongolia, through empty deserts and the hectic cities of the Indian Subcontinent. The Hilux’s low-profile look would often blend-in with local traffic, allowing me for example to access parts of Pakistan from which foreigners are normally kept well away, and it would allow me to drive inconspicuously across Afghanistan where security was a major consideration.

Water Crossing – Hunder, India – 9th August 2008

The Hilux had approximately 250,000 kilometres on the odometer when purchased, but after minimal maintenance it was ready for the road. In hindsight I should have invested a little in new springs, a new radiator and a set of new tyres, but in essence the Hilux made the initial four-and-a-half year, 155,000 kilometre journey without requiring any major work. I did not deem it necessary to modify it before setting off; adding weight with needless accessories, or compromising reliability by adding after-market parts. I did not require a vehicle which could survive a nuclear winter or drive through a metre-and-a-half of standing water, and I did not want a vehicle which was obviously foreign and drew attention. I had an aluminium deck made for the cargo bed, which allowed me both to pitch a tent, and keep my luggage safe. Aside from this, the Hilux was left standard.

A Spectacular Campsite – Pangong Lake, India – 14th August 2008

***

The Hilux is fantastic for travelling in; a trusty travel companion which almost never gives trouble. Travelling with a vehicle greatly improves my travel experiences, and I can say unequivocally that it gives me vastly more freedom and opportunity to explore than I had previously, when backpacking. It also forces me to strictly adhere to one of my most fundamental rules of travel; to travel only by surface means. At times, when out in the wilderness, accompanied by fellow vehicle-based travellers, or just out alone in the desert, far away from cities, crowds and noise, the vehicle is absolutely central to the travel experience.

Negotiating a Loose Log Bridge – Burawai, Pakistan – 30th September 2008

The Hilux has been through some scrapes, always down to poor handling on my part; it has almost fallen off a log-bridge into roaring mountain river and been hit by a rockfall in Pakistan, fallen through a frozen river in Mongolia and twice flown off icy Siberian roads; each time continuing without fault. Indeed, in more than 208,000 kilometres it has only broken down once, due to nothing more than a kink in a fuel hose.

Keeping a Low Profile – Bamiyan, Afghanistan – 22nd October 2009

***

Upon returning to the UK in December 2011, the truck was parked-up, out in the dismal British weather. Mechanically, the truck was still in great condition and passed a British MOT (roadworthiness test) with minimal work, but the bodywork was starting to decay. There was of course no question of selling the truck and I soon settled on a plan which I had had loosely in mind for some time; to totally restore the vehicle back to original condition. This would turn out to be massively time-consuming and expensive, but also deeply rewarding and educational. With the exception of repainting, very nearly all the work was carried out by myself. With the exception of suspension components, only genuine Toyota parts were used.

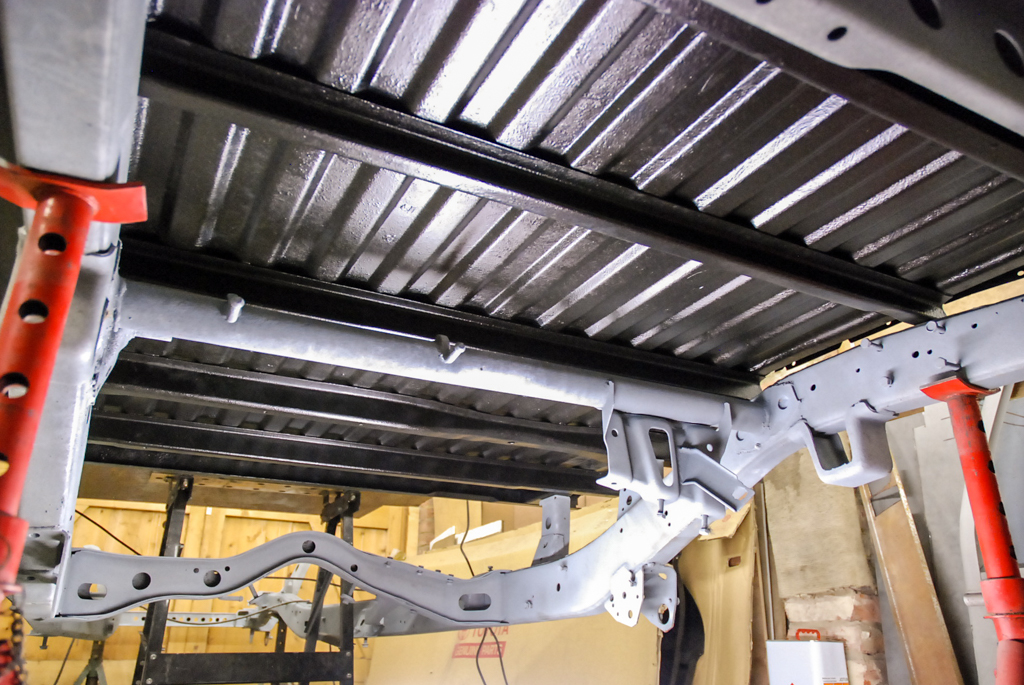

Chassis and Cargo Bed

The chassis had some minor welding carried out, then was shot-blasted and sprayed with molten zinc. Much of the bodywork was replaced, panel-by-panel by drilling out the original spot-welds and re-welding original panels to replace those which were corroded. Heavy rustproofing was carried out to maximise future body life.

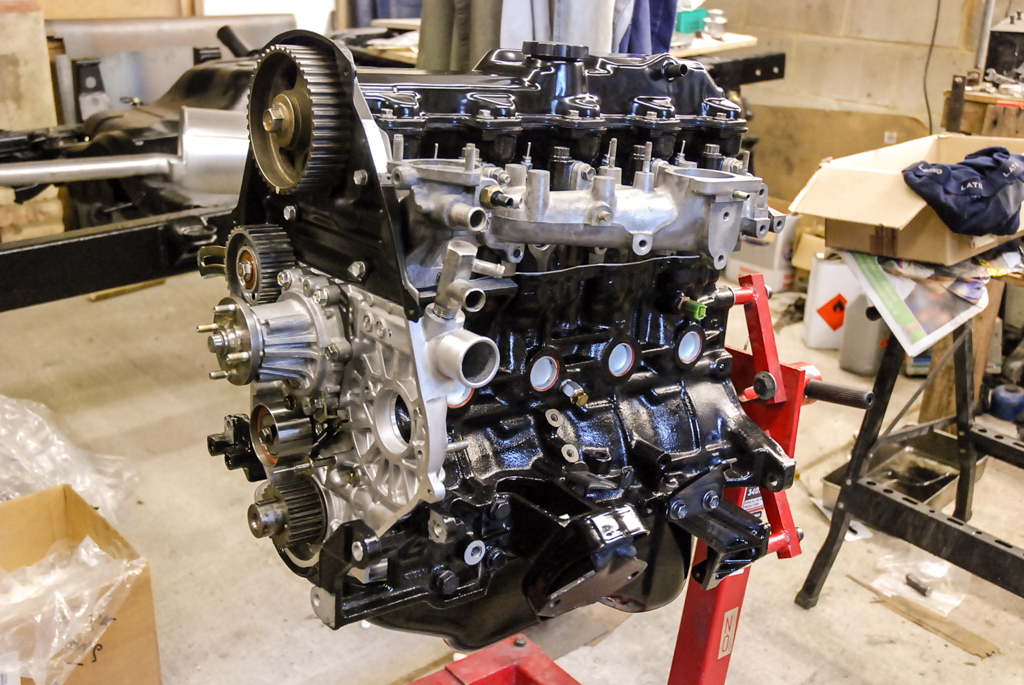

Engine

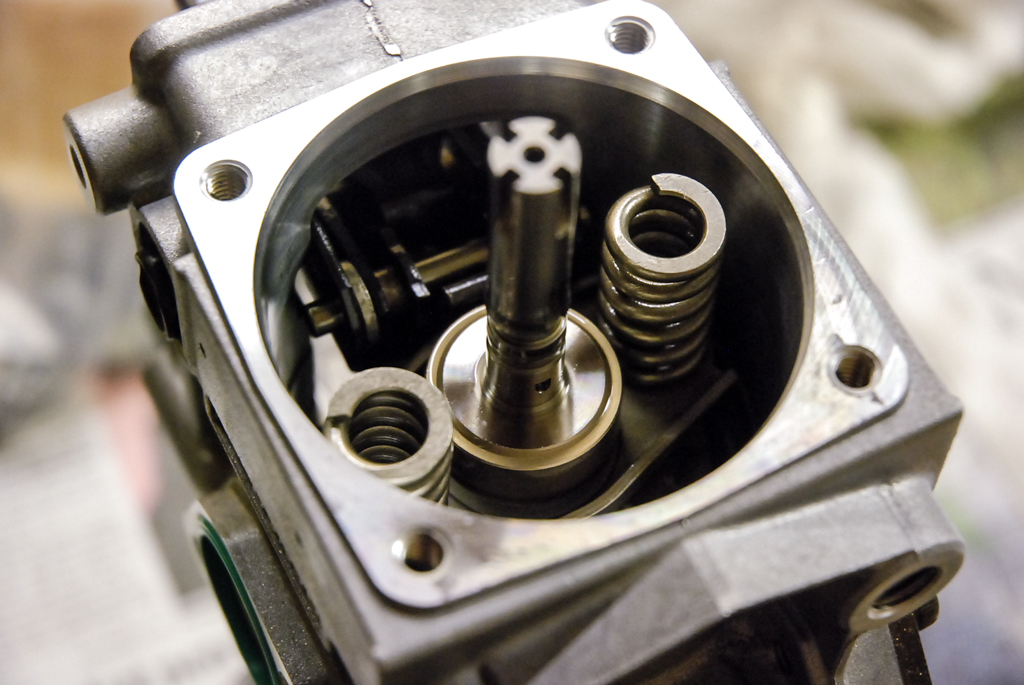

Diesel Injection Pump

The engine was stripped, all tolerances checked (the block had actually been bored out to a 0.50 millimetre oversize in Pakistan in 2009) and all service parts replaced. The injection pump was overhauled, worn parts replaced, then calibrated by a diesel specialist. The transmission, transfer and entire driveline were overhauled with all new seals and new bearings where necessary.

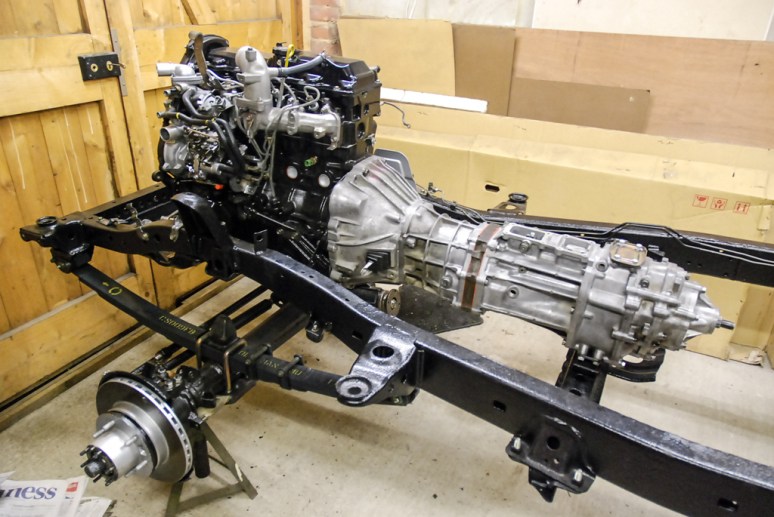

Rolling Chassis

The bare bodywork was then totally resprayed, not in the old Midnight Blue, but in Sandy Taupe, a colour more suited to the environments in which I travel. Eventually, after seven months of daily work, the truck emerged from the garage, in like-new condition. That very evening I would set off to continue the Odyssey.

Engine Bay

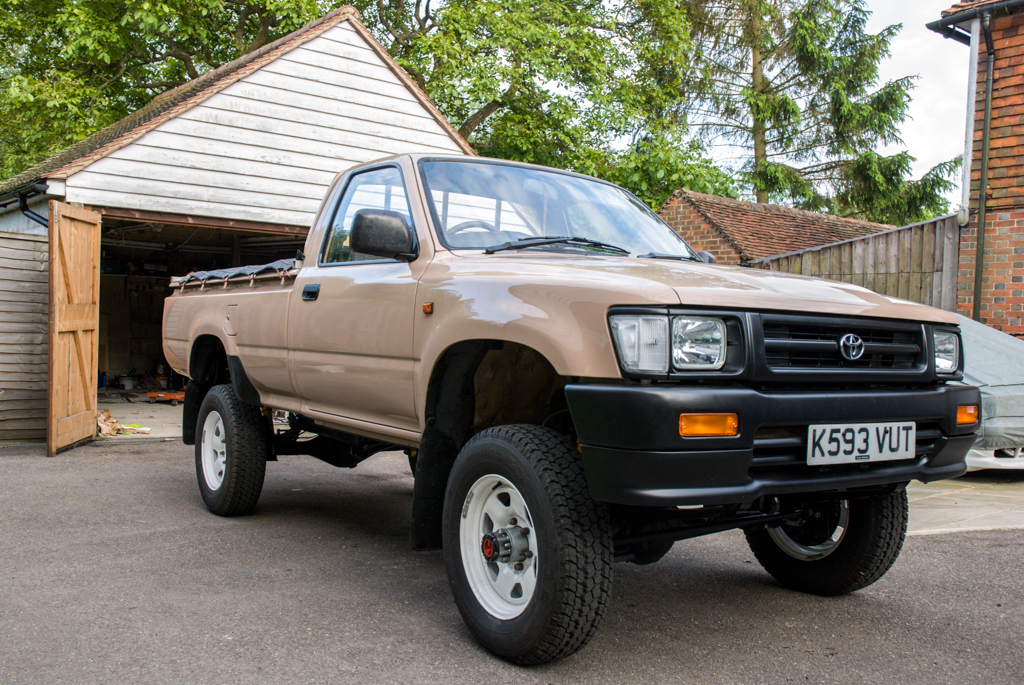

Restoration Completed, Hours Before Departure – UK – 2nd June 2014

With only very minor teething problems from bolts which had not been tightened correctly, the Hilux made the 33,000 kilometres of the second part of The Odyssey without a problem.

Spectacular view after a 45º C Desert Piste – Karynzharyk Depression, Kazakhstan – 21st June 2014

In 2015, the Hilux made another journey of very nearly 20,000 kilometres, all the way to the Arctic. Some noises from a prematurely worn clutch disc indicated issues with the transmission but posed no real problems.

A Peaceful Campsite – Lake Sevan, Armenia – 9th September 2014

Currently the Hilux is in dry-storage awaiting a future journey. Recalling the time in 2005 that I bought the Hilux, my aim was to take it on a long trip around Africa, and that ambition remains in my mind; a two to three year journey around Africa at some point in the early 2020s. In the mean-time I am designing a lightweight storage and living system to fit discreetly within the vehicle’s cargo bed, and stockpiling spares for a vehicle which might be thirty years old when it finally enters Africa.

***

As I made successive trips into Russia, I learned that large parts of the country which are inaccessible during the warm summer months become linked to the main road network in winter by ice-roads, built on frozen swamps and rivers. This, together with a long-held ambition to make a trip to the very coldest inhabited parts of the planet in winter, gave rise to the idea of a true winter trip across Russia. Extreme cold temperatures (below -40º C) would cause diesel fuel to gel, and would make sleeping outdoors extremely uncomfortable. Therefore, the Hilux would not be suitable. I needed a second vehicle.

Choosing a second Toyota was not easy. Petrol-engined 4x4s almost always come with automatic transmissions, something I strongly dislike. Large, inline-six engines have heavy fuel consumption and V6 engines come with much extra complexity making them difficult to work on when compared to an inline engine, making them less suitable for rugged use. Finally however, in November 2015 I found my vehicle; a 1996 Hilux Surf with a 2.7 litre, sixteen-valve petrol engine and a manual gearbox. By amazing co-incidence I was heading back to the UK (to view a different vehicle) just as this extremely rare vehicle came to my attention. After speaking to the seller, I made a train journey from Kent to North Wales and purchased the vehicle on a dark Sunday evening. Roughly an hour into the drive back to Kent, the engine overheated and I had to be rescued in the early hours of the morning from the side of the M40. Despite the unpromising start, I was unfazed, and looking forward to getting the vehicle back into top condition.

After replacing a leaking radiator cap and defective thermostat, the Hilux Surf made the journey back to The Continent without incident a few weeks later. With a target leaving date of August 2016, I felt that I had plenty of time to refresh the engine and suspension, and prepare the interior for living in. Work began in February 2016, but it would soon become obvious that far more repair work was required than I had originally planned for. The suspension had to be entirely replaced and upgraded. Some minor welding was required in a few places on the chassis and body. Most seriously however, after opening the engine it was evident that a valve had previously dropped into cylinder #1, damaging the piston and cylinder walls. The cylinder head had cracked and been welded. Worst of all, very poor quality repair work on the engine had allowed the ingress of dirt, meaning that all bearing surfaces on the crankshaft and balance shafts were scored. A full engine rebuild was required, as well as a new cylinder head.

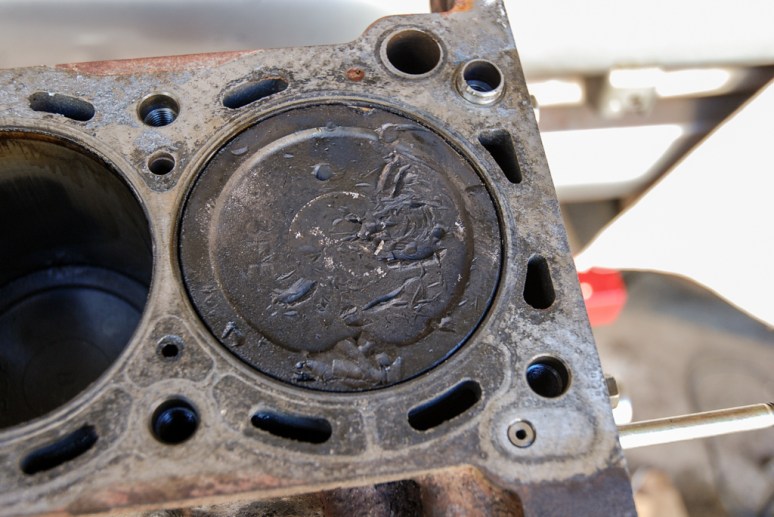

Damaged #1 Piston

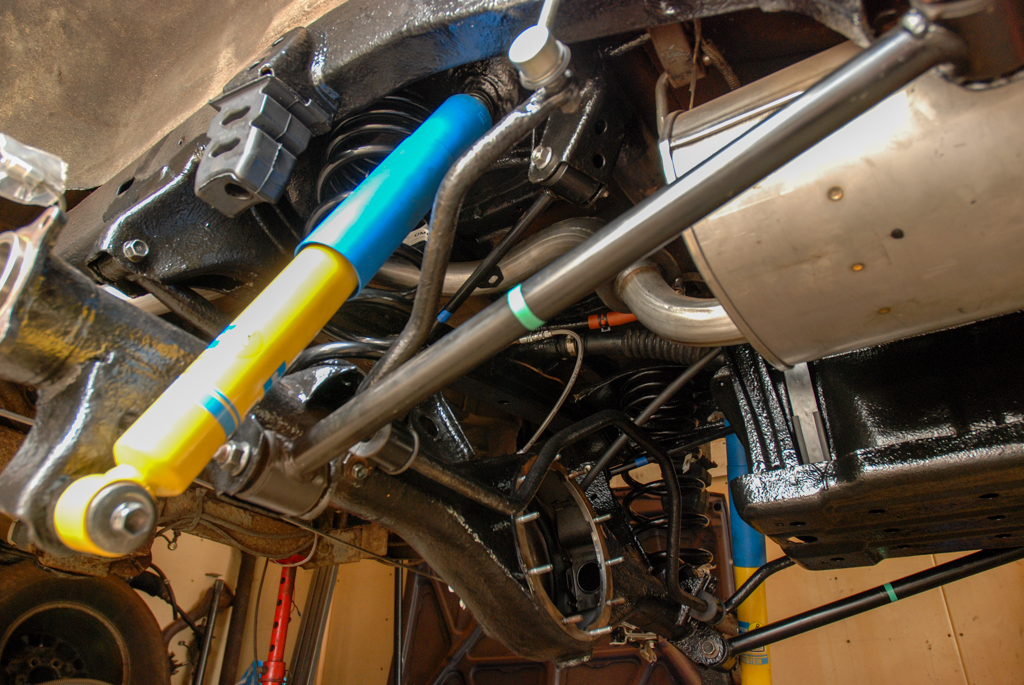

Upgraded Rear Suspension

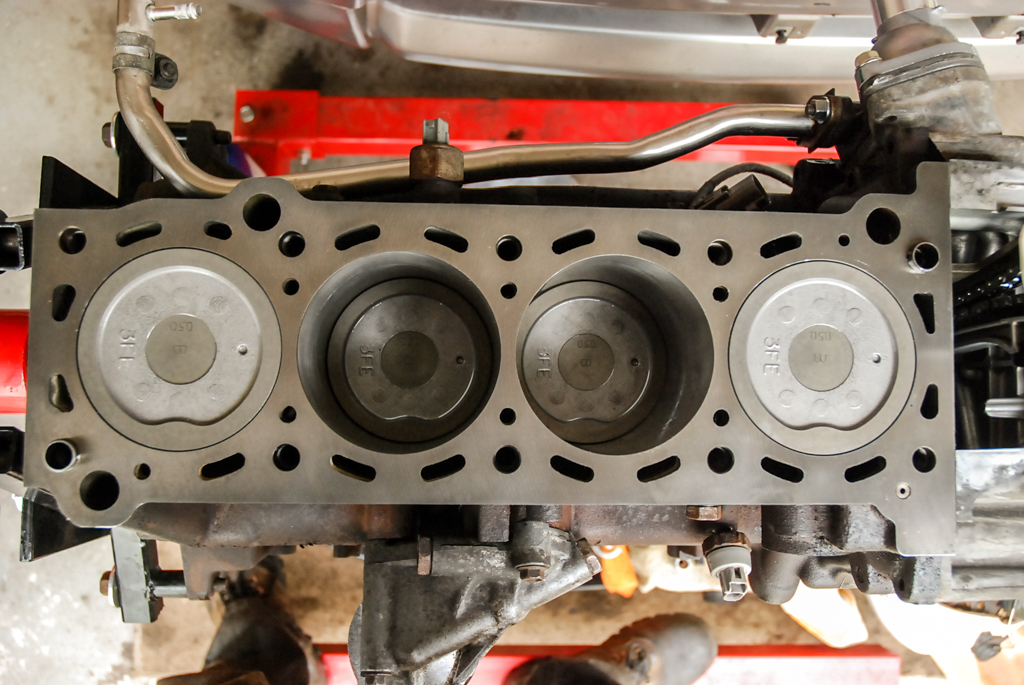

Rebored and Decked Cylinder Block with New, Over-Sized Pistons

As the summer progressed, it became increasingly clear that my departure date would have to be delayed and after some tense weeks I made the decision to postpone departure by one year. In November 2016 the engine ran for the first time, though it was not until April 2017 that with the engine fully rebuilt together with all ancillaries, a completely overhauled drivetrain and brand new, uprated suspension, the Hilux Surf took to the road again. Time was then spent finishing the interior additions; a welded sleeping platform with luggage storage area, a split charge system and second deep-cycle battery mounted behind the driver’s seat, and a two kilowatt cabin air heater, fed from an internal diesel tank.

Beach Camping – Sea of Japan, Russia – 28th September 2017

All this came together in August 2017 when, a year later than planned, I set off to cross Eurasia to the Russian city of Magadan on the Pacific Ocean. I soon found the Hilux Surf to be quite a different driving experience from the Hilux; with almost twice as much power from a smooth, quiet petrol engine and far more comfortable coil sprung suspension it is far more refined, though slightly less rugged than the Hilux. The Hilux Surf soon proved itself to be similarly reliable, without a single issue (two punctures notwithstanding) in the more than 23,000 kilometres which it drove to Magadan, where it was placed into dry storage.

Returning to Magadan in January 2018, I set off westwards through the harshest of winters. The Hilux Surf encountered temperatures down to -42º C, drove for hundreds of kilometres on the ice of the Lena River and Lake Baikal, started from cold in temperatures as low as -31º C and was left idling overnight, with the engine once running very nearly continuously for around sixty hours. Nothing proved problematic for the vehicle.

First Drive of the Year on the Frozen Sea of Okhotsk – Magadan, Russia – 19th January 2018

Despite the harsh conditions, two crashes into deep snow and countless spins on the hard-packed snow of various ice roads, the Hilux Surf drove almost 14,000 kilometres from Magadan to Moscow without a single mechanical issue. With the autonomous internal heater and additional insulation keeping the cabin up to 50º C above ambient temperature, it was also a very comfortable refuge from the lethal conditions. All considered, the Hilux Surf is an astoundingly dependable and very capable winter expedition vehicle.

The Temperature Approaches -40º C on the Kolyma Highway – Sakha Republic, Russia – 3rd February 2018

From Western Europe to Magadan and back, the Hilux Surf made a faultless journey of more than 43,000 kilometres. Making a detailed inspection after returning, the front upper ball joints were found to be worn; most likely from broken rubber boots and lubricant failure due to the extreme cold. With these replaced, the vehicle is steadily being cosmetically improved and is ready for future journeys in the Middle East, or perhaps a winter journey to Mongolia, before the Trans-African Overland begins in the Hilux.
